Professional Services
Hardware

In its first incarnation as a Silicon Valley startup, Microcomm designed, prototyped and tested the hardware for numerous innovative systems, from cellphones to satellites. These archival photos from the 1970s show how we sparked a telecommunications revolution. But we're not resting on our laurels. Ask us about Microcomm's 21st Century Solutions.

bullet     Read Microcomm's Hardware Design Philosophy

bullet    Read about Microcomm's involvement in Early Satellite TV

Click on thumbnails below to download full-sized images

thumbnail 7 The Microcomm lab in Silicon Valley, circa 1979. Here, founder and Chief Engineer Prof. H. Paul Shuch developed the world's first commercial home satellite TV receiver. He subsequently used this same 4.7 meter dish for his first observational SETI experiments.

Microcomm photo

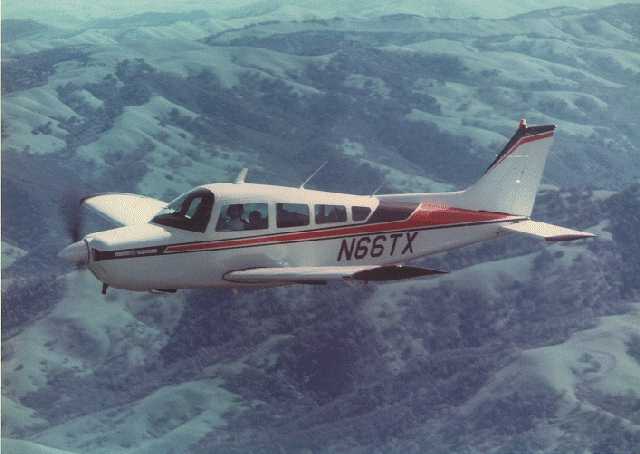

thumbnail 1 Microcomm's company aircraft, a 1971 Beechcraft A24/R Sierra, sports the company logo on its cowling. The plane provided business transportation for our Chief Engineer from 1980 through the end of 2009. It was also used for flight testing of Microcomm's patented BiDCAS airborne anti-collision radar.

Microcomm photo

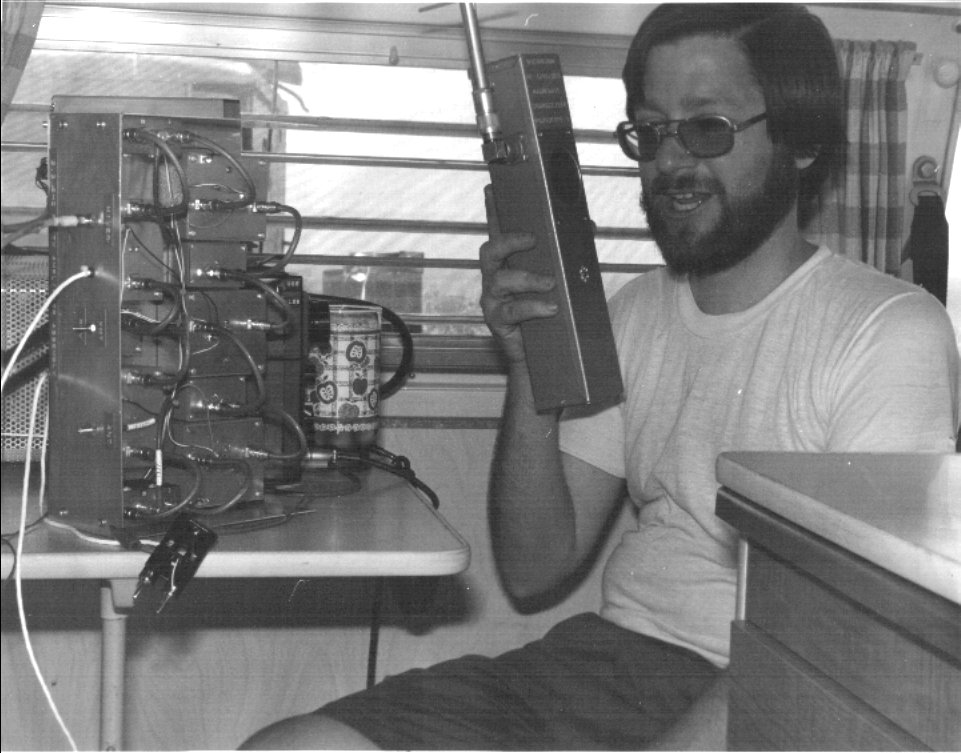

thumbnail 2 Testing MicroTalkieTM, a very early cellphone prototype. (On the table in front of Prof. Shuch is the first cellsite repeater breadboard.) If you look closely, you may recognize the interior of a 1970s vintage Volkswagen Westphalia campmobile - Microcomm's first mobile laboratory.

Microcomm photo

thumbnail 2 Prof. H. Paul Shuch, Microcomm's founder and Chief Engineer, in the classroom teaching microwave technology, circa 1977.

Microcomm photo

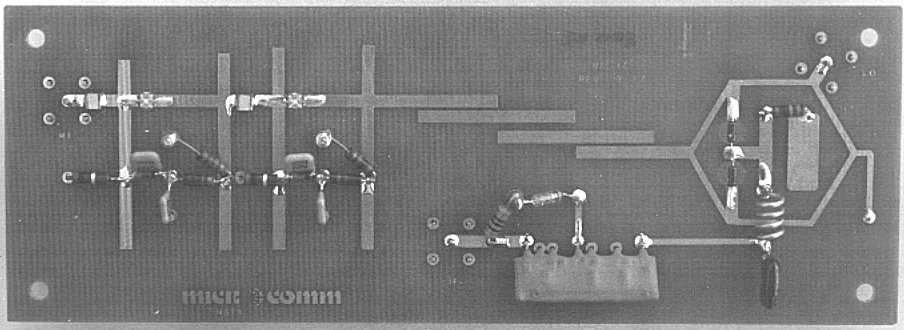

thumbnail 3 Downconverter for S-band video reception from India's INSAT-1A satellite. This same board was used to support Instructional Television Fixed Service (ITFS) broadcasts in the US.

Microcomm photo

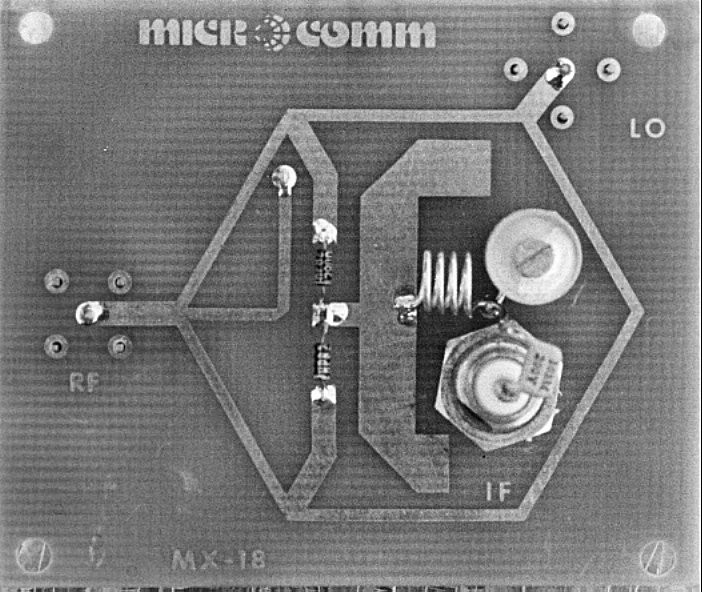

thumbnail 1 Single-balanced mixer for 18 cm hydroxyl line radio astronomy. This mixer was also used in the early (modular) versions of our 1691 MHz WEFAX receivers.

Microcomm photo

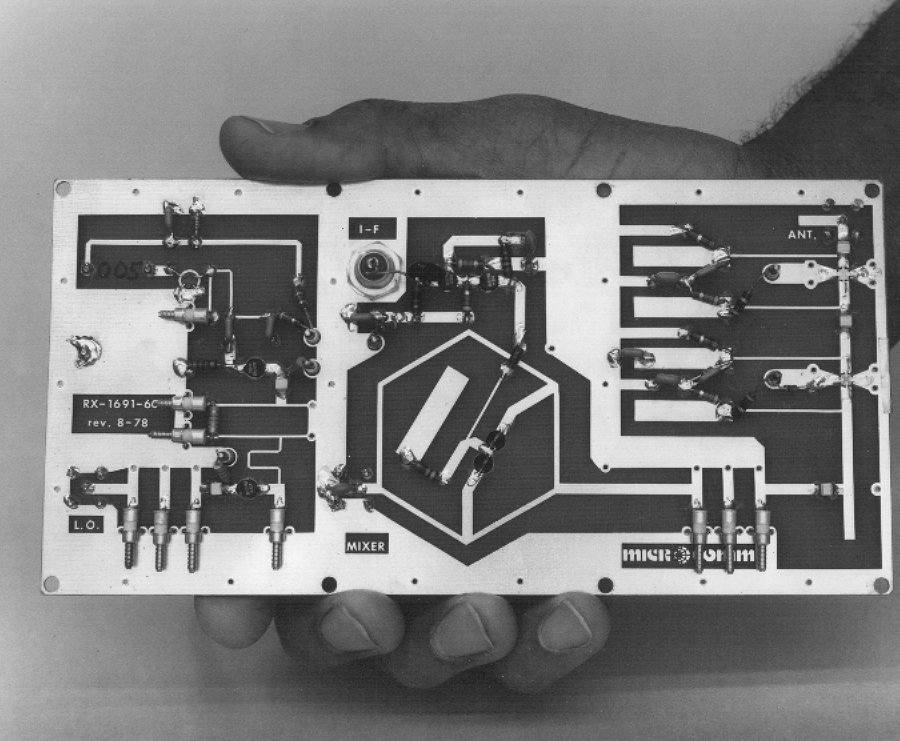

thumbnail 4 Downconverter for S-band weather satellite reception. Note the integral balanced mixer (the hexagon structure near the middle of the board), derived from the radio astronomy mixer depicted above. Hexagonal microstrip mixers have become, over the years, a Microcomm signature.

Microcomm photo

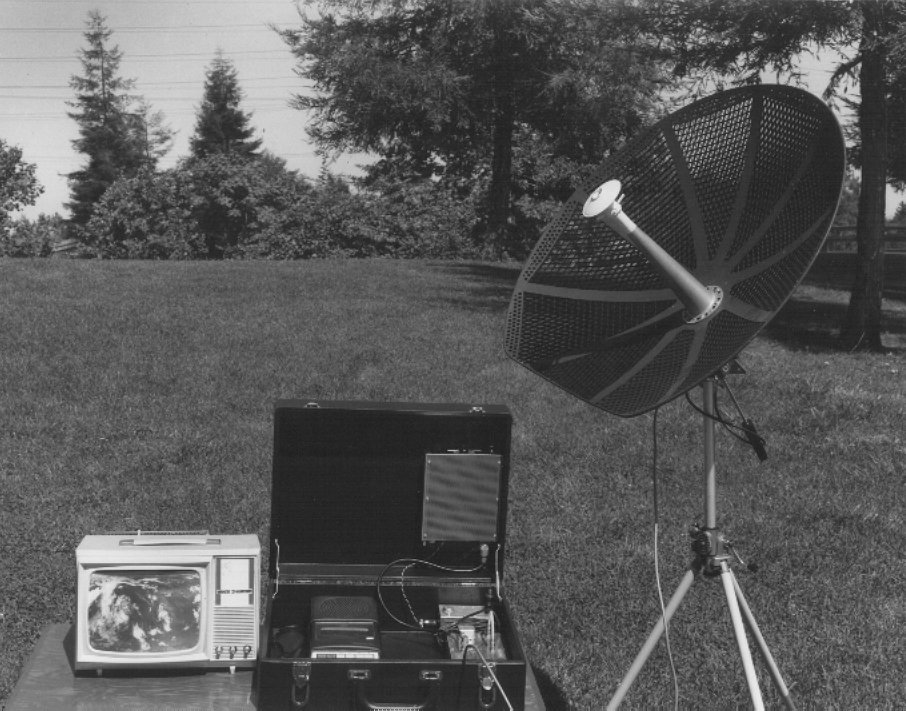

thumbnail 5 First receive system for geostationary S-band weather satellites. The system incorporates the downconverter board seen above, along with a Microcomm low noise preamplifier (see below), antenna, VHF receiver, and digital display adapter.

Microcomm photo

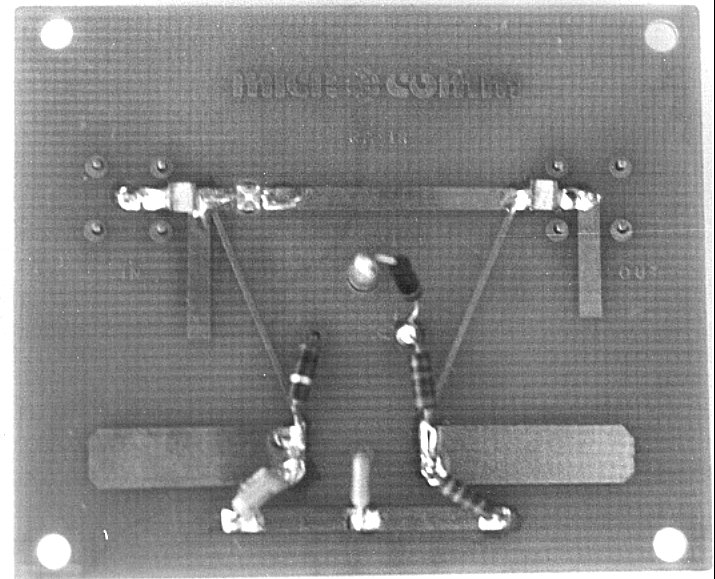

thumbnail 10 Microstrip S-band low-noise preamplifier. This bipolar transistor amplifier, achieving a noise figure in the 2 dB range, was made obsolete just two years later by Microcomm's own gallium arsenide (GaAs) LNAs, at half the noise, twice the gain, and half the price.

Microcomm photo

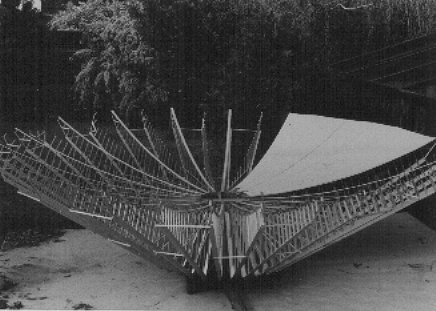

thumbnail 6 Construction of the first home satellite TV dish. This 4.7 meter diameter parabolic reflector had a focal length to diameter ratio of 0.46, and was held together by no fewer than 3700 pop rivets.

Microcomm photo

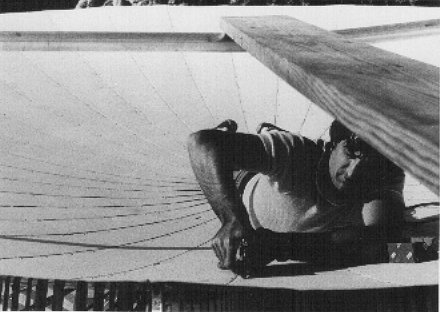

thumbnail 7 John Kinik puts the finishing touches on the surface of the first TVRO antenna. Huge by today's standards, this 4.7 meter parabolic reflector nevertheless paved the way for modern 18-inch dish direct broadcast TV systems a quarter-century later.

Microcomm photo

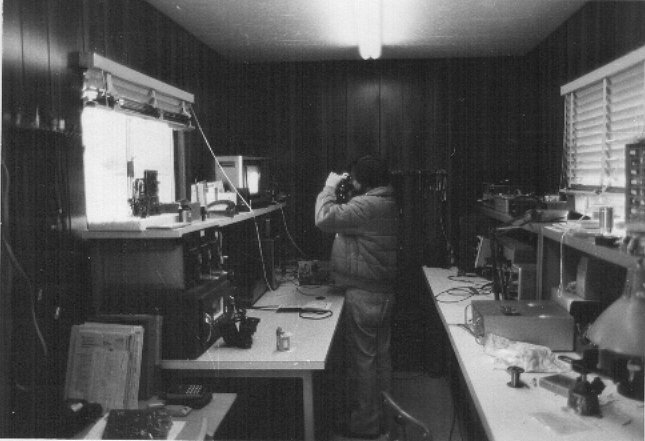

thumbnail 8 In the Microcomm laboratory, Prof. Shuch snaps off-the-screen shot of the first successful home satellite TV receiver in action.

Microcomm photo

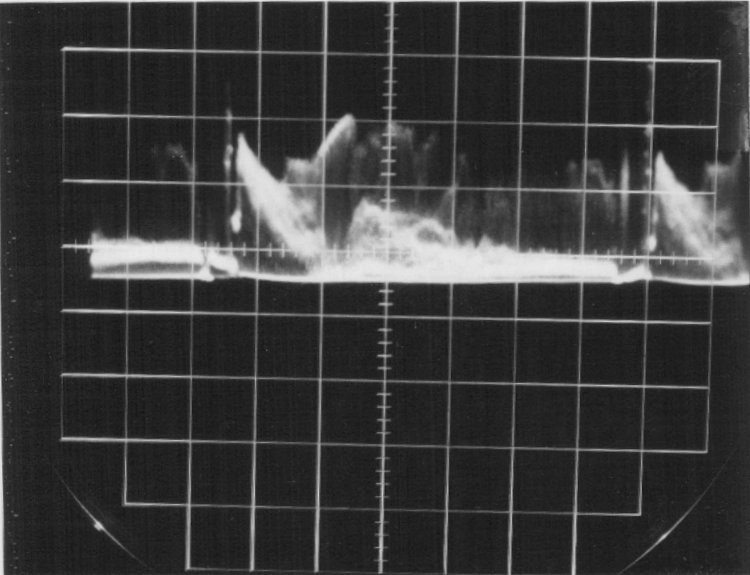

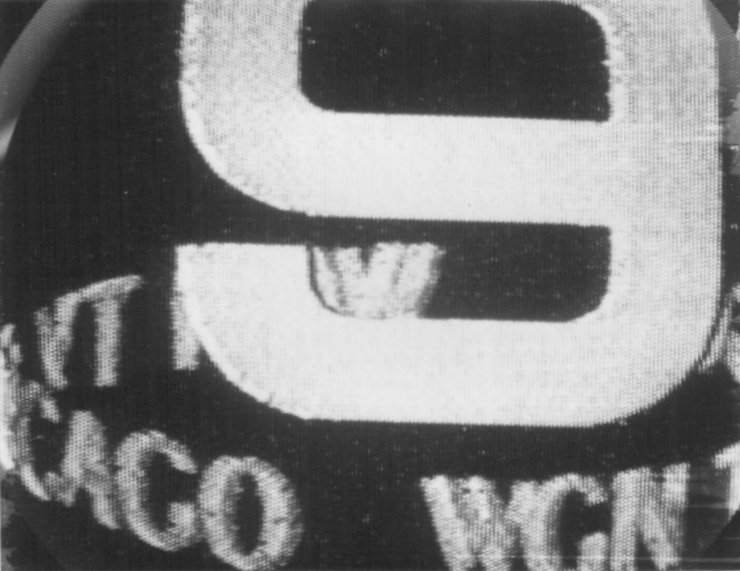

thumbnail 14 First crude images from the world's first commercial home satellite TV receiver, as seen on the oscilloscope (left) and the video monitor (right).

Microcomm photos
thumbnail 15

thumbnail 9 Microstrip L-band solid state power amplifier. These two Watt units were used as driver amplifiers in in early amateur radio moonbounce (EME) stations.

Microcomm photo

thumbnail 11 Prof. Shuch at the dedication of the National Air and Space Museum, exhibiting the backup flight hardware for OSCAR 1, the world's first non-Government communications satellite. Paul Shuch served Project OSCAR in a number of capacities, from volunteer technician all the way up to Chairman of the Board, and narrowly skirted conflict-of-interest issues when Microcomm provided free consulting services to this worthy nonprofit venture.

Microcomm photo

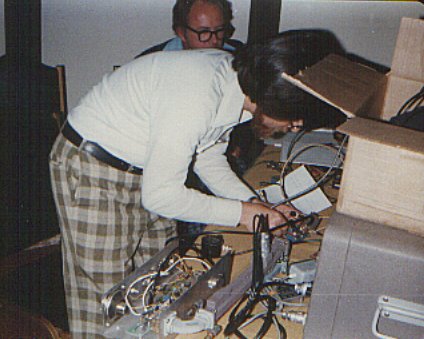

thumbnail 12 Prof. Shuch tweaking an X-band receiver on the noise figure bench. The gas discharge noise tube was replaced shortly thereafter by a modern solid-state noise diode. Behind Shuch sits Dr. Dave Clingerman, who now heads up Olde Antenna Labs of Colorado.

Microcomm photo

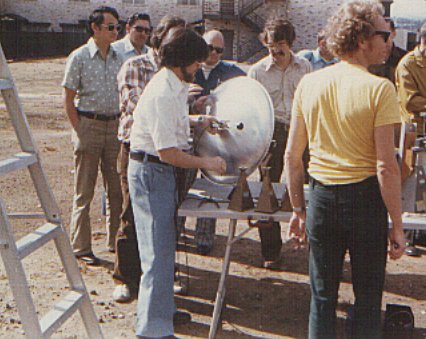

thumbnail 13 Prof. Shuch comparing X-band antennas on an outdoor antenna range. Our modern calibrated compact antenna range still employs similar techniques. To Shuch's right (in the orange shirt) you can see Dr. James Vogler, who later went on to distinguish himself as a senior physicist and engineer at Hewlett-Packard (now Agilent).

Microcomm photo
